12. Data Processing and Visualization¶
This section is intended to explain procedures for carrying out common post-processing tasks with OpenMC. While several utilities of varying complexity are provided to help automate the process, the most powerful capabilities for post-processing derive from use of the Python API.
12.1. Working with State Points¶
Tally results are saved in both a text file (tallies.out) as well as an HDF5 statepoint file. While the tallies.out file may be fine for simple tallies, in many cases the user requires more information about the tally or the run, or has to deal with a large number of result values (e.g. for mesh tallies). In these cases, extracting data from the statepoint file via the Python API is the preferred method of data analysis and visualization.
12.1.1. Data Extraction¶
A great deal of information is available in statepoint files (See
State Point File Format), all of which is accessible through the Python
openmc.StatePoint class can load statepoints and access data
as requested; it is used in many of the provided plotting utilities, OpenMC’s
regression test suite, and can be used in user-created scripts to carry out
manipulations of the data.
An example notebook demonstrates how to extract data from a statepoint using the Python API.

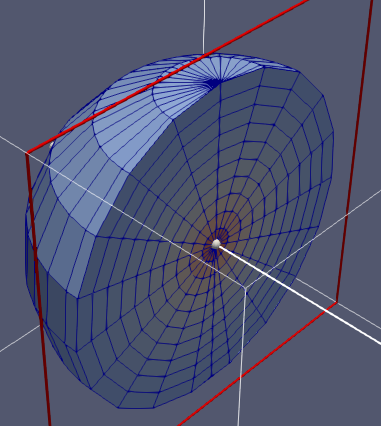

12.1.2. Plotting in 2D¶
The example notebook also demonstrates how to plot a structured mesh tally in two dimensions using the Python API. One can also use the openmc-plot-mesh-tally script which provides an interactive GUI to explore and plot structured mesh tallies for any scores and filter bins.
12.2. Particle Track Visualization¶
OpenMC can dump particle tracks—the position of particles as they are transported through the geometry. There are two ways to make OpenMC output tracks: all particle tracks through a command line argument or specific particle tracks through settings.xml.
Running openmc with the argument
--track will cause
a track file to be created for every particle transported in the code. Be
careful as this will produce as many files as there are source particles in your
simulation. To identify a specific particle for which a track should be created,
Settings.track attribute to a tuple containing the batch,
generation, and particle number of the desired particle. For example, to create
a track file for particle 4 of batch 1 and generation 2:
settings = openmc.Settings() settings.track = (1, 2, 4)
To specify multiple particles, the length of the iterable should be a multiple of three, e.g., if we wanted particles 3 and 4 from batch 1 and generation 2:
settings.track = (1, 2, 3, 1, 2, 4)
After running OpenMC, the working directory will contain a file of the form “track_(batch #)_(generation #)_(particle #).h5” for each particle tracked. These track files can be converted into VTK poly data files with the openmc-track-to-vtk script.
12.3. Source Site Processing¶
For eigenvalue problems, OpenMC will store information on the fission source
sites in the statepoint file by default. For each source site, the weight,
position, sampled direction, and sampled energy are stored. To extract this data
from a statepoint file, the
openmc.statepoint module can be used. An
example notebook demontrates how to analyze and plot source information.
